EARTHING PRODUCTS

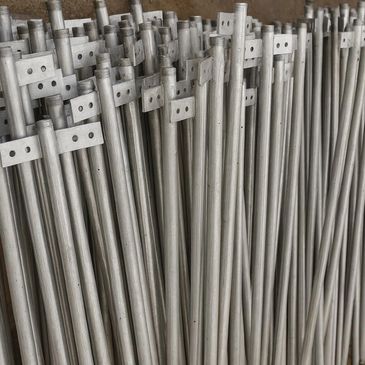

Pipe type earthing is one of the most commonly used and effective grounding methods for electrical systems. It involves burying a galvanized iron pipe vertically into the ground to safely discharge fault current into the earth. The pipe is surrounded by layers of charcoal and salt to improve soil conductivity and reduce earth resistance. This method provides reliable protection against electrical shocks, short circuits, and lightning. Pipe type earthing is easy to install, economical, and suitable for residential, commercial, and industrial applications, ensuring safe operation and long-term electrical system performance.

Rod type earthing is a simple and efficient grounding method used to protect electrical systems from fault currents and electrical surges. It involves driving a copper or galvanized iron rod vertically into the ground to provide a low-resistance path for electrical discharge. This method is widely used where soil conditions permit deep penetration and good conductivity. Rod type earthing is easy to install, requires minimal space, and offers long-term reliability with low maintenance. It is suitable for residential, commercial, and industrial installations, ensuring safety against electric shock, equipment damage, and lightning-related hazards.

Flat type earthing is a grounding method that uses a copper or galvanized iron flat strip buried horizontally in the ground to provide an effective path for fault current. The flat electrode is placed in a trench at a specified depth and surrounded by charcoal, salt, or conductive compound to improve earth conductivity. This method is commonly used where deep excavation is not possible and in areas with high soil resistivity. Flat type earthing offers stable performance, long service life, and easy maintenance, making it suitable for residential, commercial, and industrial electrical installations to ensure safety and reliable grounding.

Counterpoise earthing is a grounding system used mainly in transmission lines, substations, and areas with high soil resistivity. It consists of a network of horizontal conductors laid in trenches around or along structures to improve grounding performance. These conductors are usually made of copper or galvanized steel and are buried at a specific depth to provide a low-resistance path for fault and lightning currents. Counterpoise earthing helps reduce ground resistance, improves safety, and minimizes step and touch potential. It is highly effective in rocky or dry soil conditions where conventional earthing methods are less efficient.
